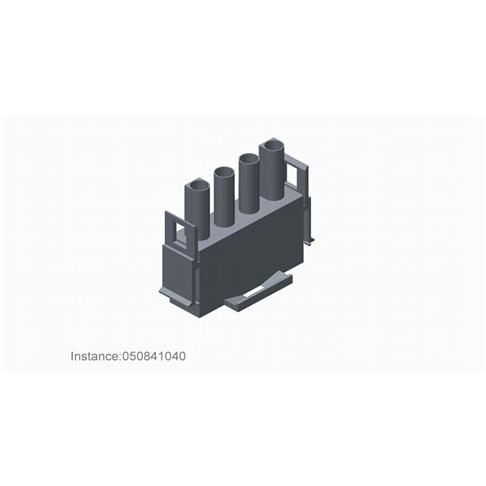

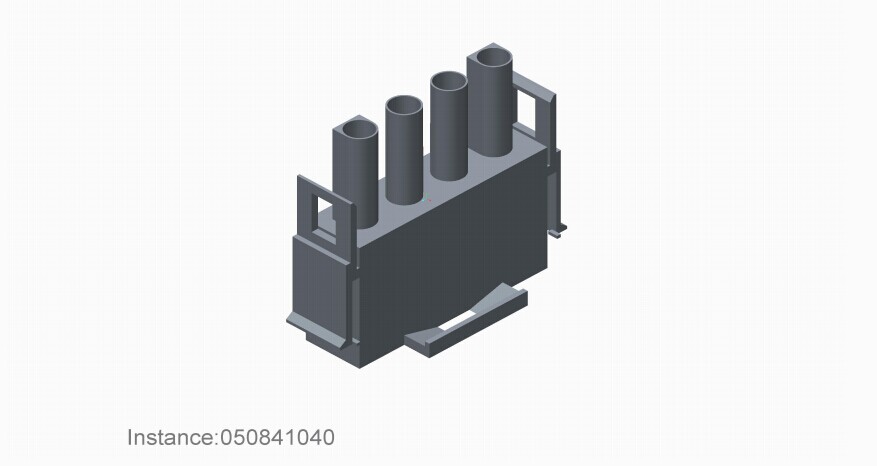

General:
StatusActive
CategoryCrimp Housings
Series42021
ApplicationPower, Wire-to-Board, Wire-to-Wire
CommentsGlow Wire Equivalent Part Number 36643-0004Current – Maximum per contact 20A if used with 36663and 36664 terminal
OverviewMLX? Power Connectors
Product NameMLX?
UPC800753577541
Physical:
Circuits (maximum)4
Circuits Detail4
Color - ResinNatural
Flammability94V-2
GenderMale
Glow-Wire CompliantNo
Keying to Mating PartNone
Lock to Mating PartYes
Material - ResinNylon
Net Weight3.264/g
Number of Rows1
Packaging TypeBag
Panel MountNo
Pitch - Mating Interface6.35mm
Polarized to Mating PartYes
StackableNo
Temperature Range - Operating-55°C to +105°C
Electrical:
(Please review the Product Specification for specific details.)
Current - Maximum per Contact13.5A, 20.0A
Agency Certification:
Please find UL Certificates by searching the UL Database using the Molex Series Number. Click here to visit the UL Database
CSALR19980
ULE29179
Solder Process Data:
Solderability Shelf Life Statement
Lead-freeProcess CapabilityN/A
Material Info:
Engineering Number42021-4A
6710 BL013
6710 BL005
6710 BL001
6710 BK005
