General:
StatusActive

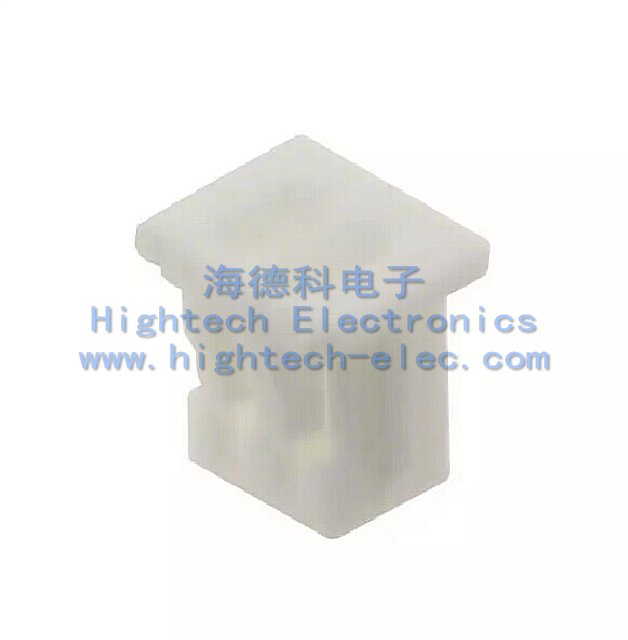

CategoryCrimp Housings
Series51021
ApplicationSignal, Wire-to-Board, Wire-to-Wire
Current Derating Order No987651-3691
OverviewPicoBlade™ Connector System
Product NamePicoBlade™
UPC800753575592
Physical:
Circuits (maximum)2
Color - ResinNatural
Flammability94V-0
GenderFemale
Glow-Wire CompliantNo
Lock to Mating PartYes
Material - ResinPolyester
Net Weight26.150/mg
Number of Rows1
Packaging TypeBag
Panel MountNo
Pitch - Mating Interface1.25mm
Polarized to Mating PartYes
StackableNo
Temperature Range - Operating-40°C to +85°C
Electrical:
(Please review the Product Specification for specific details.)
Current - Maximum per Contact0.8A, 1.0A
Agency Certification:
Please find UL Certificates by searching the UL Database using the Molex Series Number. Click here to visit the UL Database
CSALR19980
ULE29179
6710 BL013
6710 BL005
6710 BL001
6710 BK005
