General：
StatusActive
CategoryCrimp Housings
Series2695
ApplicationSignal, Wire-to-Board
OverviewKK? Interconnect System - Molex

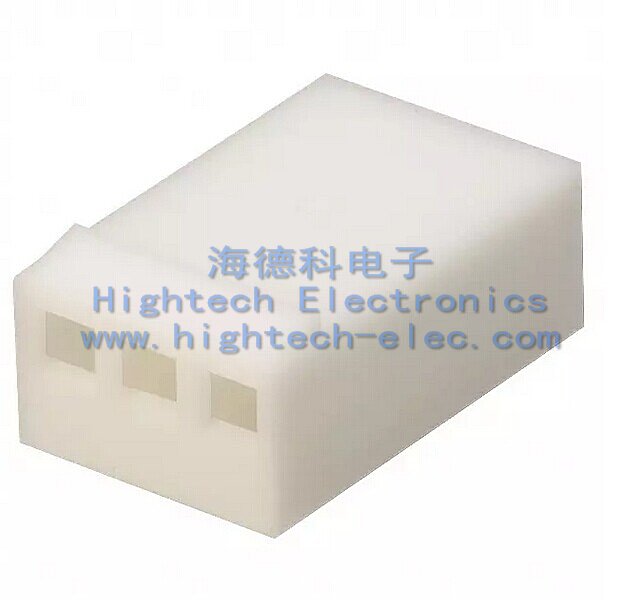

Product NameKK? 254
UPC800753593671
Physical：
Circuits (maximum)3
Color - ResinNatural (White)
Flammability94V-0
GenderFemale
Glow-Wire CompliantNo
Lock to Mating PartYes
Material - ResinNylon
Net Weight0.400/g
Number of Rows1
Packaging TypeBag
Panel MountNo
Pitch - Mating Interface2.54mm
Pitch - Termination Interface2.54mm
StackableNo
Temperature Range - OperatingSee Product Specification
Agency Certification：
Please find UL Certificates by searching the UL Database using the Molex Series Number. Click here to visit the UL Database
CSALR19980
ULE29179
Solder Process Data：
Lead-freeProcess CapabilityN/A
Material Info：
Old Part Number2695-03R
6710 BL013
6710 BL005
6710 BL001
6710 BK005
