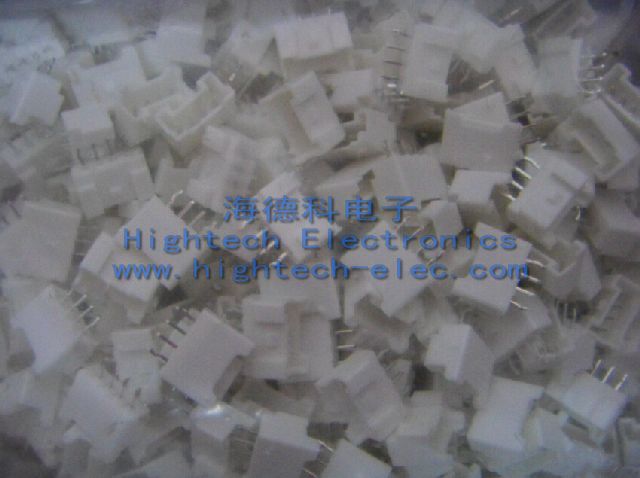

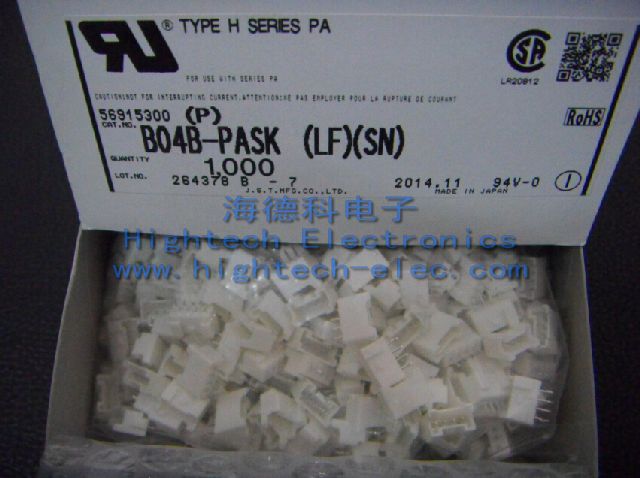

B04B-PASK(LF)(SN)

价格:¥电询
原价:¥电询
  • 选择数量:
    库存850
加入购物车立即购买
商品详情
产品参数:

Part#: B04B-PASK(LF)(SN)

Std Packaging Qty:  1000

Packaging :Bulk


2.0mm pitch connector with secure locking device

*Secure locking device

The housing has a locking device to prevent accidental disconnection because of routing wires or of vibration, and also reverse and different circuit numbers mating.


Product Profile

Series :PA connector

Category :Wire to Board Crimp style Connectors

Type: Disconnectable type,Crimp style, With secure locking device

Feature: With secure locking device



Specification

Pitch: 2.0 mm

Current rating :3A (AWG#22)

Voltage rating: Standard type/250V,Retainer mountable type/100V

PC board  mounting direction :Top entry

Number of Positions: 4

Color:  Natural (White)

Compliant with RoHS.
This unit price is for a single piece.
